Tests up to 38kVA

Load Tester

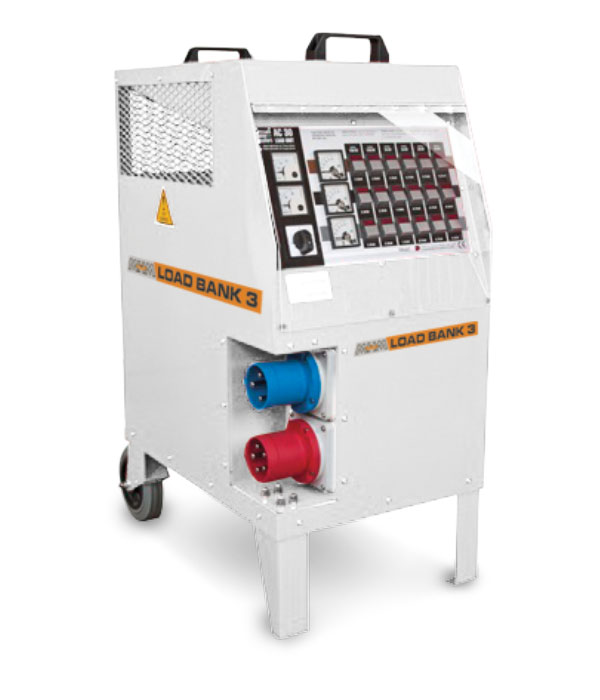

MHM Load Bank 3

38kVA Generator Portable Load Bank Tester

This portable dual voltage generator load bank is an essential piece of generator test equipment, designed to offer portable, easy, simple and efficient voltage, frequency and amperage load testing of a generator.

MHM Load Bank 3
IMPORTANT NOTE: This load bank tester will load and test the generator. No further equipment is required.
Features & Benefits
  • Maximum test load:
    3ph (400v) = 38kVA / 30kW
    1ph (230v) = 19kVA / 15kW
    Ideal to load & test a fleet of generators up to 38kVA
  • Load bank tester displays voltage (v), frequency (Hz) & amperage (A) under both load and no-load conditions
    Allows test engineer to ensure correct setting of generator
  • Portable unit, complete with 2 x castor wheels and 2 x handles
    Ideal for workshop or mobile engineer
  • Plug and play connectivity
    Load bank comes complete with 1 x 400v (63A – 1.5m) + 1 x 230v (63A – 1.5m) generator to load bank test leads
Socket Configuration
3ph (400V) 1ph (230V)
63A 63A
1 x Plug 1 x Plug
Test Leads Configuration (1.5m)
3ph (400V) 1ph (230V)
63A 63A
1 x Plug + 1 x Socket 1 x Plug + 1 x Socket
