complete with 6kVA generator
HVO Fuel Approved

Portable Mobile
Lighting Tower complete with Silenced 4kVA Diesel Generator

BABY-LITE (LED-4)

When looking for a portable, easy to manage and highly versatile lighting solution, look no further than our MHM Lightower Baby-Lite (LED-4).

BABY-LITE (LED-4)
4m Mast
standard load delivery 28 per truck
silenced
Features & Benefits
Lighting Towers
  • 4 x 200W LED 3600 swivel & tilt lighting head
    (230v or 110v power required)
    2,300m2 Light Coverage
  • 4m vertical stainless steel manual mast
    For quick and simple erection
  • Front, side & rear fork pockets
    For easy lifting on site
  • Generator can be removed in under 10 minutes
    Allowing the use of either the lighting rig or generator separately
  • Complete on trolley kit, folding handles + 2x fully adjustable stabiliser legs
    For easy portability and set up
Generators
  • 4kVA (230v/110v) AC Generator Power
    Plenty of power to run the lighting head plus small tools on site
  • Linz alternator
    Heavy duty and proven reliability
  • Kohler/ Lombardini diesel engine
    Electric start, power, reliability & robust strength
  • HVO (Hydrotreated Vegetable Oil) fuel approved
    Suitable to run off either diesel, HVO or a mixture of both fuels
  • Silenced canopy
    Reduced noise level

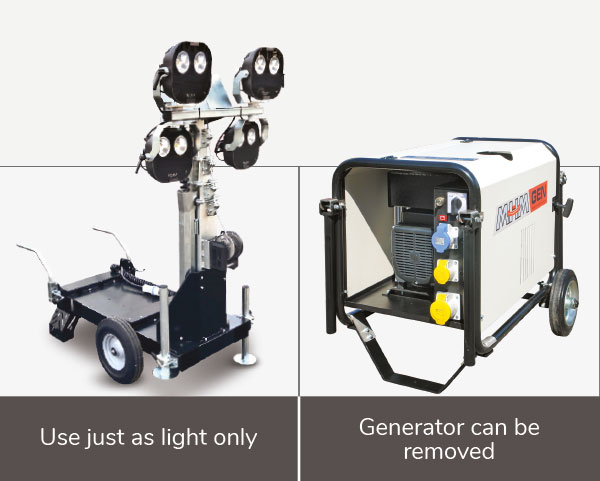

Use just as light only, Generator can be removed

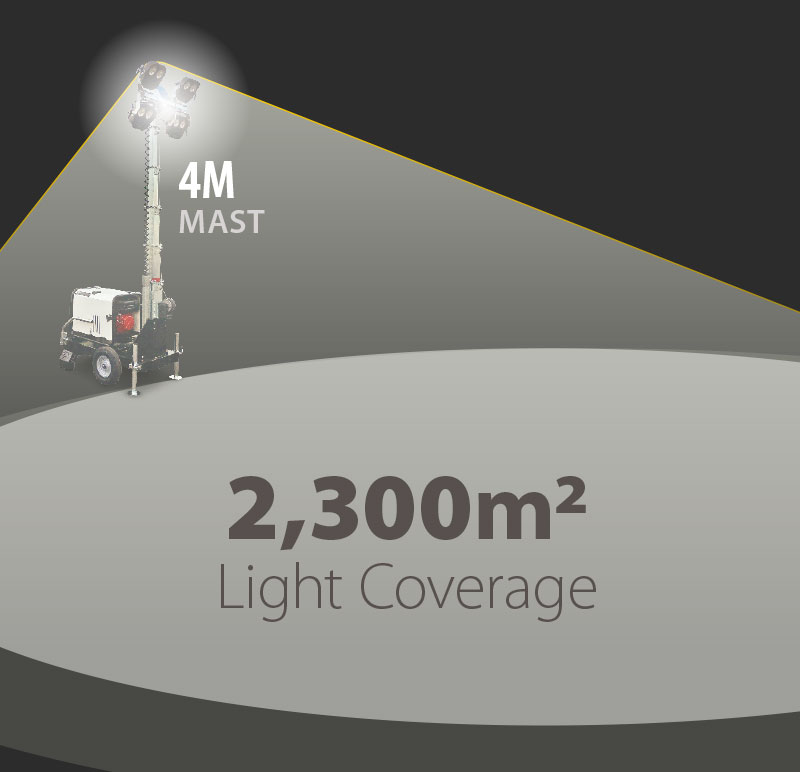

babylite led-4 coverage
babylite led-4 coverage

Weights & Dimensions

(Flat base plate to fit generator)
Length 1080 mm
Width 590 mm
Maximum Load Weight 275 kg
(Storage mode: handles folded in, stabilisers up & mast down)
Length 1470 mm
Width 865 mm
Height 1900 mm
(Operating mode: handles folded out, stabilisers down & mast up)
Length 1870 mm
Width 865 mm
Height 4000 mm
Dry Weight (No Fuel) 298 kg
Wet Weight (Fuel Full) 312 kg
Socket Configuration
1ph (230V) 1ph (110V)
32A 16A 32A 16A
- 1 1 1
